GHESKIO Tuberculosis Hospital

Project Data
Leadership
Full Team

Size

Build: 15,069 sq. ft. / 1,400 sq. m.

Year

2015

Status

Completed

Client

Les Centres GHESKIO

Services

Urban Design, Architectural Design, Landscape Design, Construction Administration, Project Accompaniment, On-Site Training

Partners

Les Centres GHESKIO, Shelley and Donald Rubin Foundation

Project Team

Sierra Bainbridge, Robertho Jean Noel, David Saladik, Adam Saltzman, Christopher Scovel, Amie Shao

Collaborators

Architectural and Landscape Design: MASS Design Group
M/E Engineer: Berelec
Structural Engineer: CBI Consulting
Civil Engineer: Fall Creek Engineering
Construction Manager: GBS Group, Raphael Izmery, Intl. Assoc. AIA
General Contractor: Chantiers d’Haiti
Landscape Consultants: Jardins & Accessoires

Haiti has the highest incidence of tuberculosis in the Western Hemisphere.

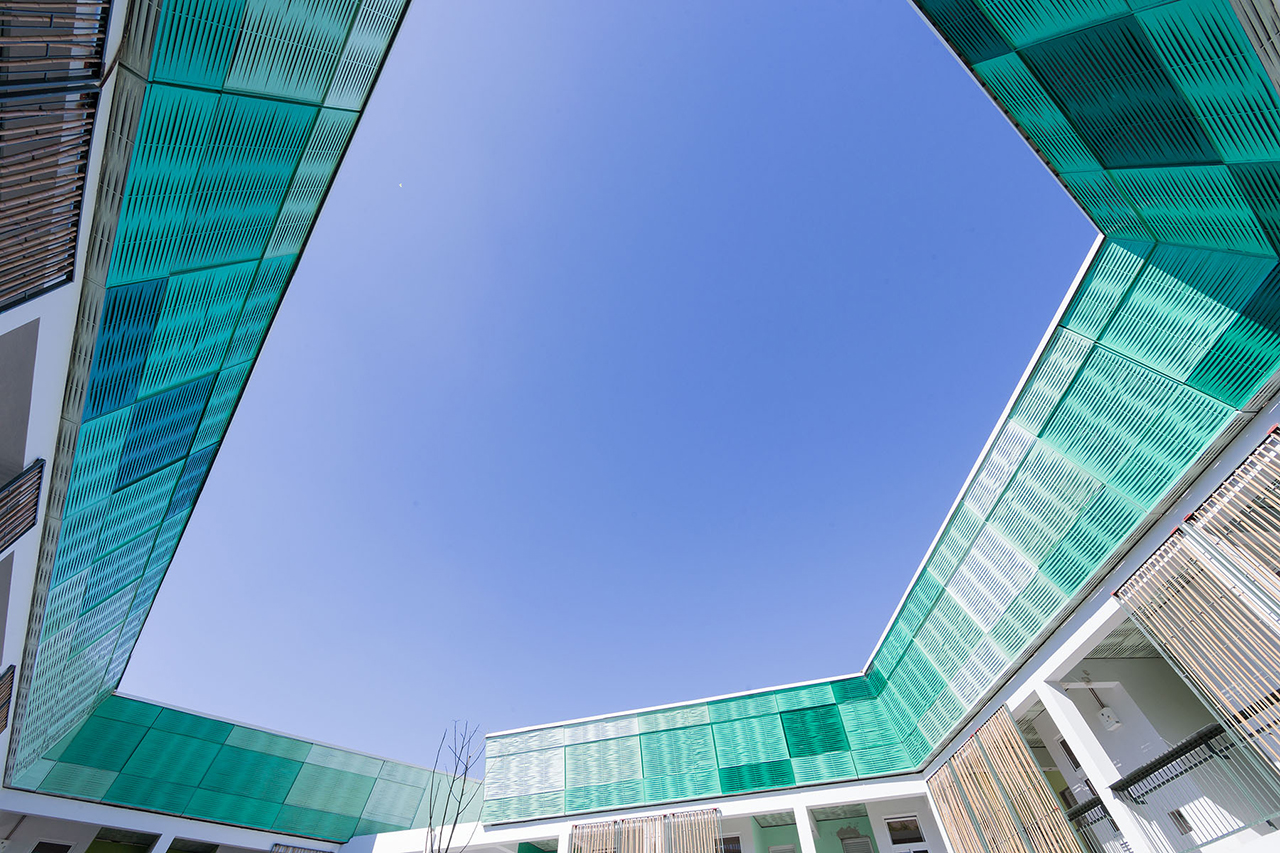

Photo of GHESKIO Tuberculosis Hospital, Photo by Iwan Baan, Exterior View from Middle of the Courtyard to the View of Ventilation Screens — © Iwan Baan

Tuberculosis is a highly contagious disease that requires treatment of up to twenty-four months. In the first two to six months of treatment, patients need to be hospitalized in isolation to prevent the spread of the disease. This extended seclusion, paired with severe side effects from treatment medication, can have significant impacts on patients’ mental health.

Photo of GHESKIO TB Hospital, Photo by Iwan Baan, Birdeye View of Hospital Highlighting Plan of the Building — © Iwan Baan

After the 2010 earthquake, the risk of tuberculosis transmission increased because large numbers of people were forced into living in crowded temporary housing camps. By some estimates, tuberculosis became three times more likely as compared to pre-2010 levels. And because much of the country’s healthcare infrastructure was badly damaged, many patients either lost access to treatment, or were cared for in tents.

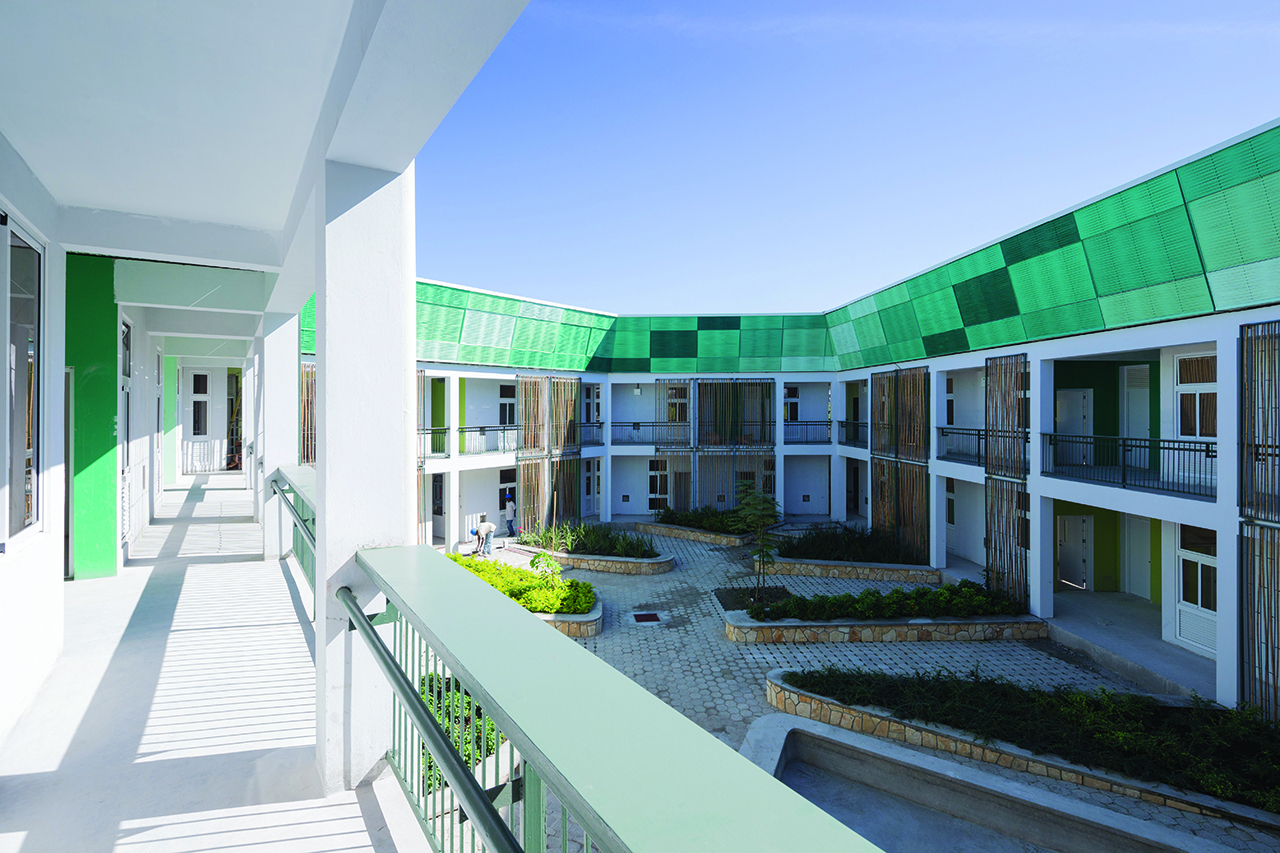

Photo of GHESKIO Tuberculosis Hospital, Photo by Iwan Baan, Upstairs open-air corridor — © Iwan Baan

Photo of GHESKIO Tuberculosis Hospital, Photo by Iwan Baan, Process Photo of Construction Worker in Courtyard — © Iwan Baan

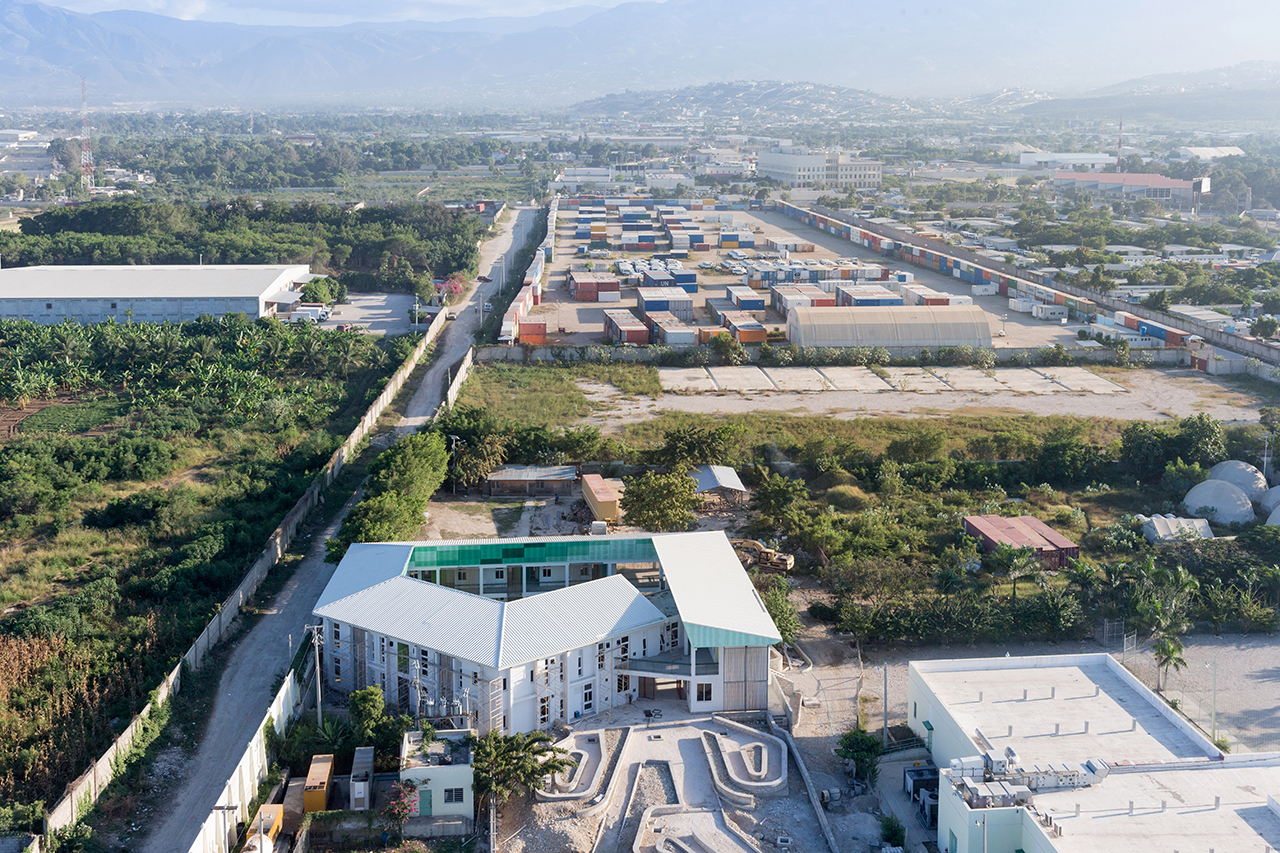

Photo of GHESKIO Tuberculosis Hospital, Aerial View of Hospital and Surrounding Port-au-Prince Neighborhood — © Iwan Baan

Despite these odds, GHESKIO had incredible success treating patients with multidrug-resistant tuberculosis (MDR-TB). Of their first 110 patients after the earthquake, 86 percent were cured or still receiving treatment—a number comparable to the most effective treatment programs around the world.

86%

Of their first 110 patients after the earthquake, 86 percent were cured or still receiving treatment—a number comparable to the most effective treatment programs around the world.

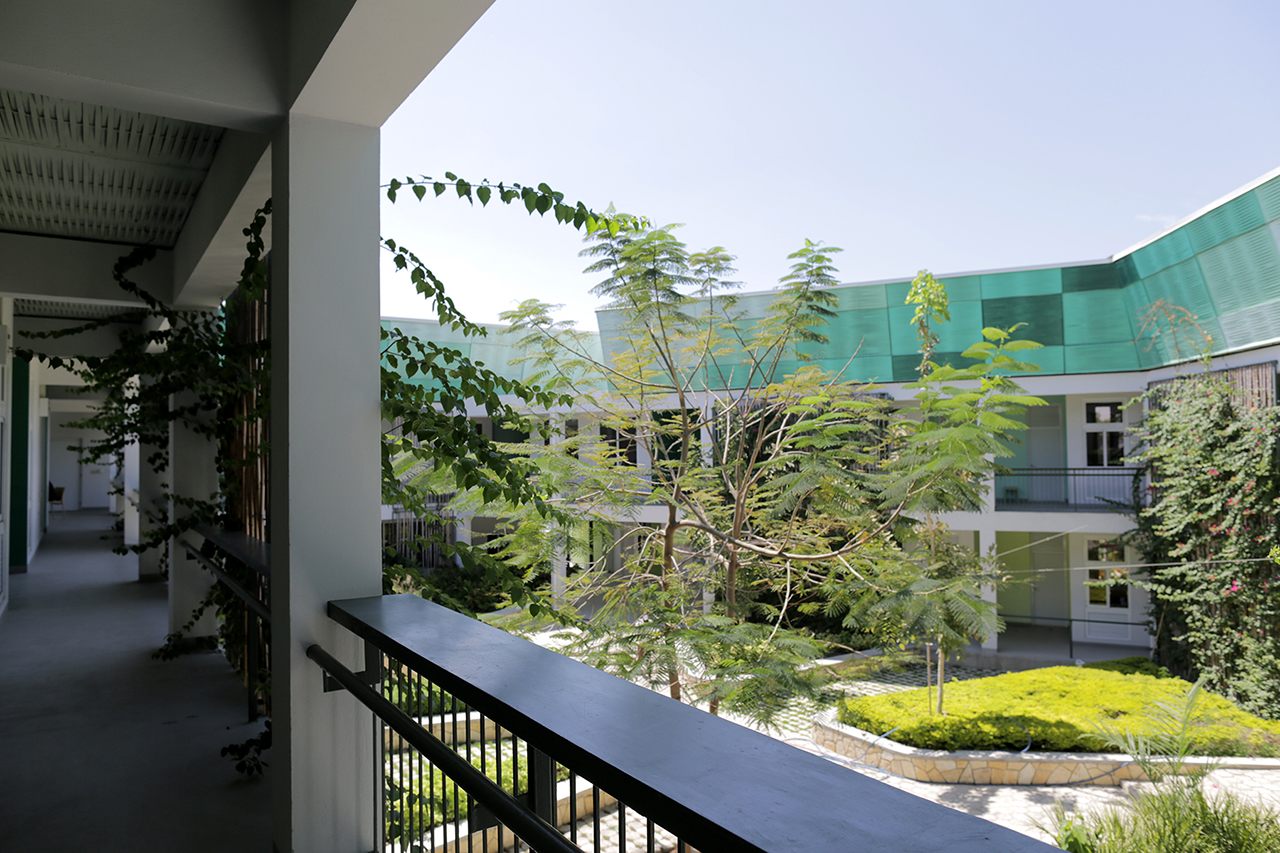

Photo of GHESKIO Tuberculosis Hospital, View of Courtyard from Second Level Exterior Hallway

The design of the new tuberculosis hospital focused on minimizing the risk of transmission while creating a more comfortable and supportive space to receive care. The hospital’s central feature is its interior courtyard and adjoining community spaces, where patients spend much of their stay.

Flower and tree beds bring color, shade, and seating to the space. Bamboo screens covered in bougainvillea vines create visual privacy for the outdoor consultation spaces adjacent to patient rooms, allowing for conversations between patients and medical staff in the open air where transmission risk is lower.

Photo of GHESKIO Tuberculosis Hospital, Photo by Iwan Baan, Patients socialize in an outdoor area — © Iwan Baan

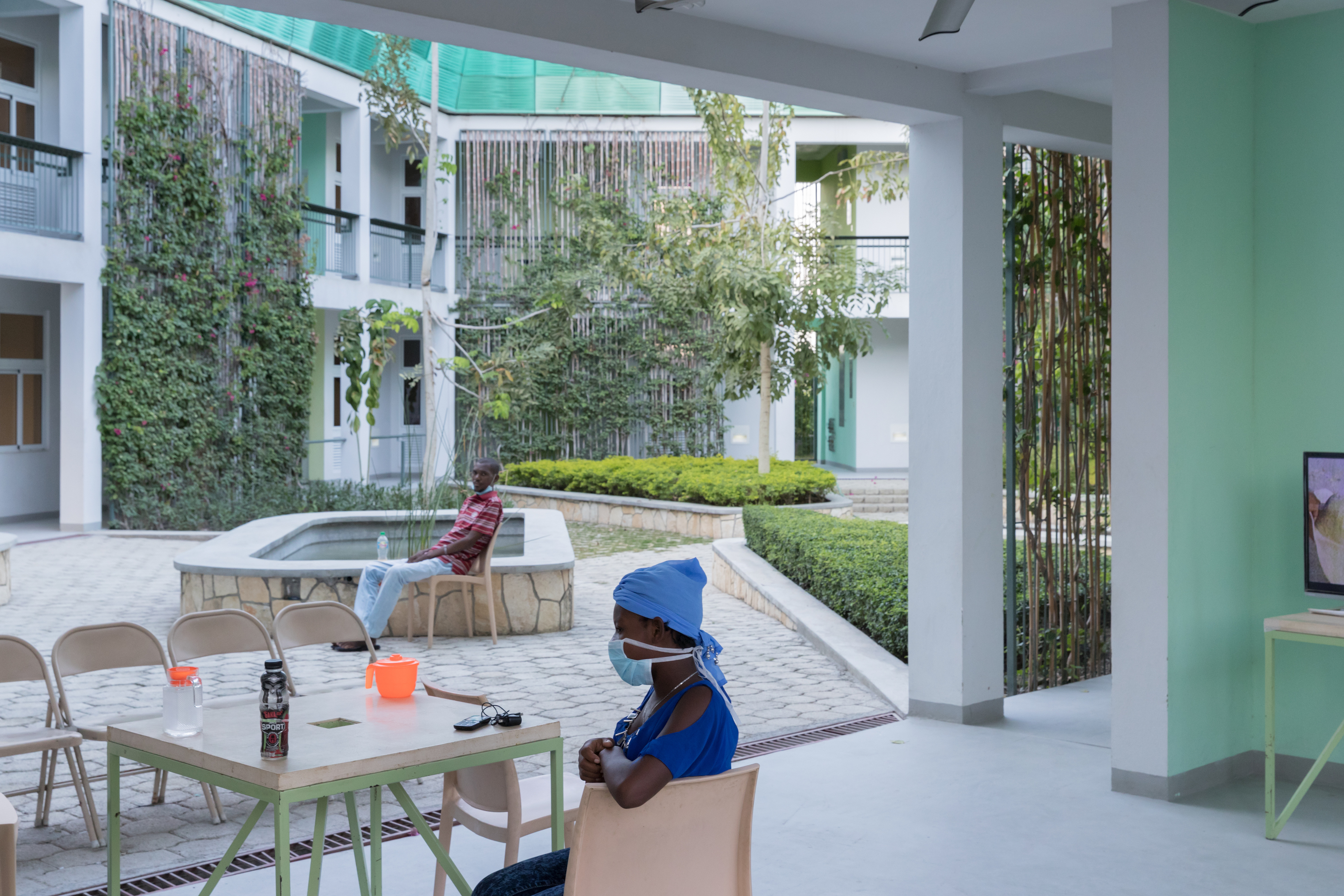

Photo of GHESKIO Tuberculosis Hospital, Photo by Iwan Baan, Patients socialize by the inner courtyard — © Iwan Baan

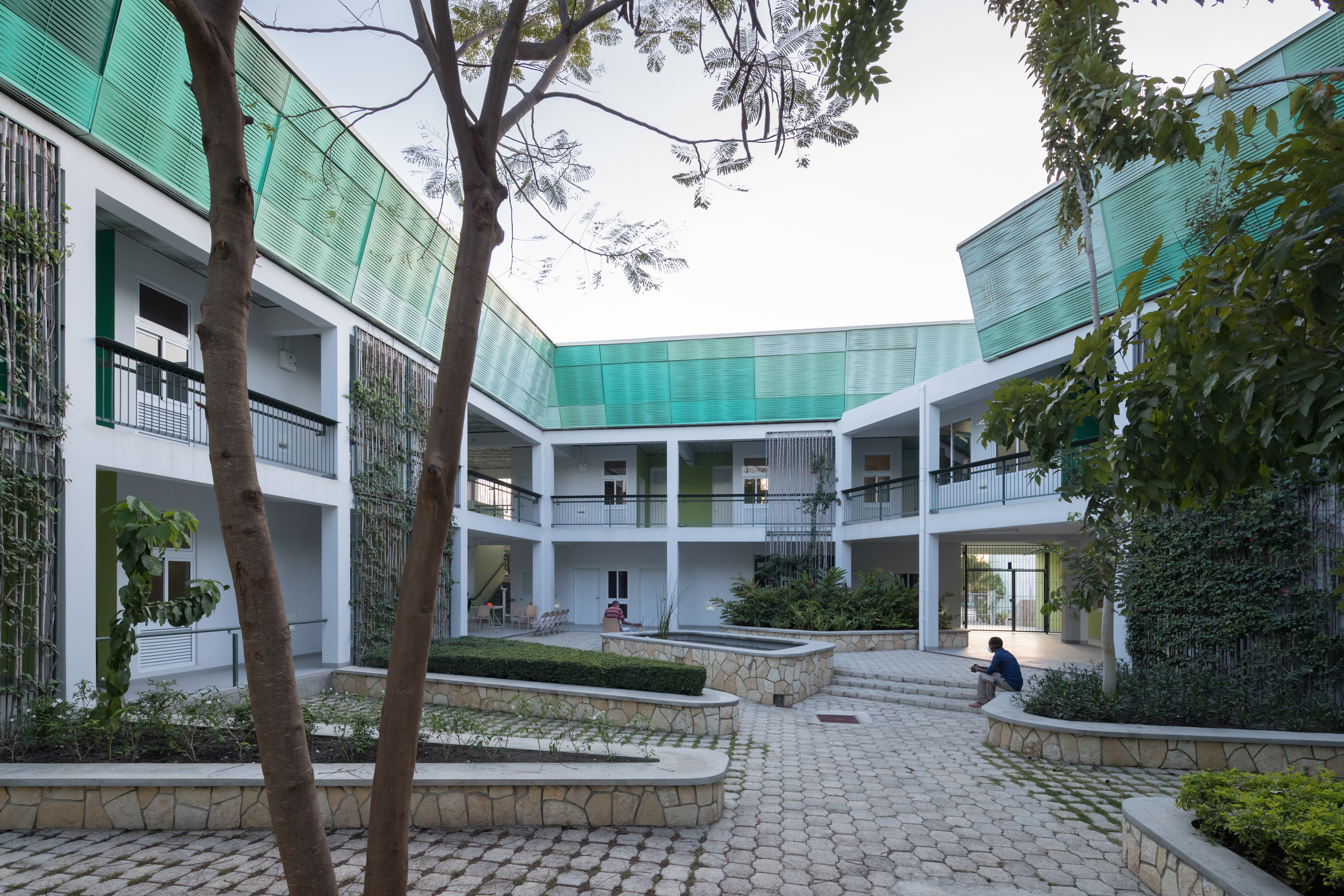

Photo of GHESKIO Tuberculosis Hospital, Photo by Iwan Baan, A Daytime image of the inner courtyard — © Iwan Baan

Strategies of passive ventilation and infection control help reduce in-hospital transmission of TB in this high-risk population, while lessening energy costs for the facility.

Photo of GHESKIO Tuberculosis Hospital, Photo by Iwan Baan, An Evening image of the inner courtyard — GHESKIO Tuberculosis Hospital, © Iwan Baan

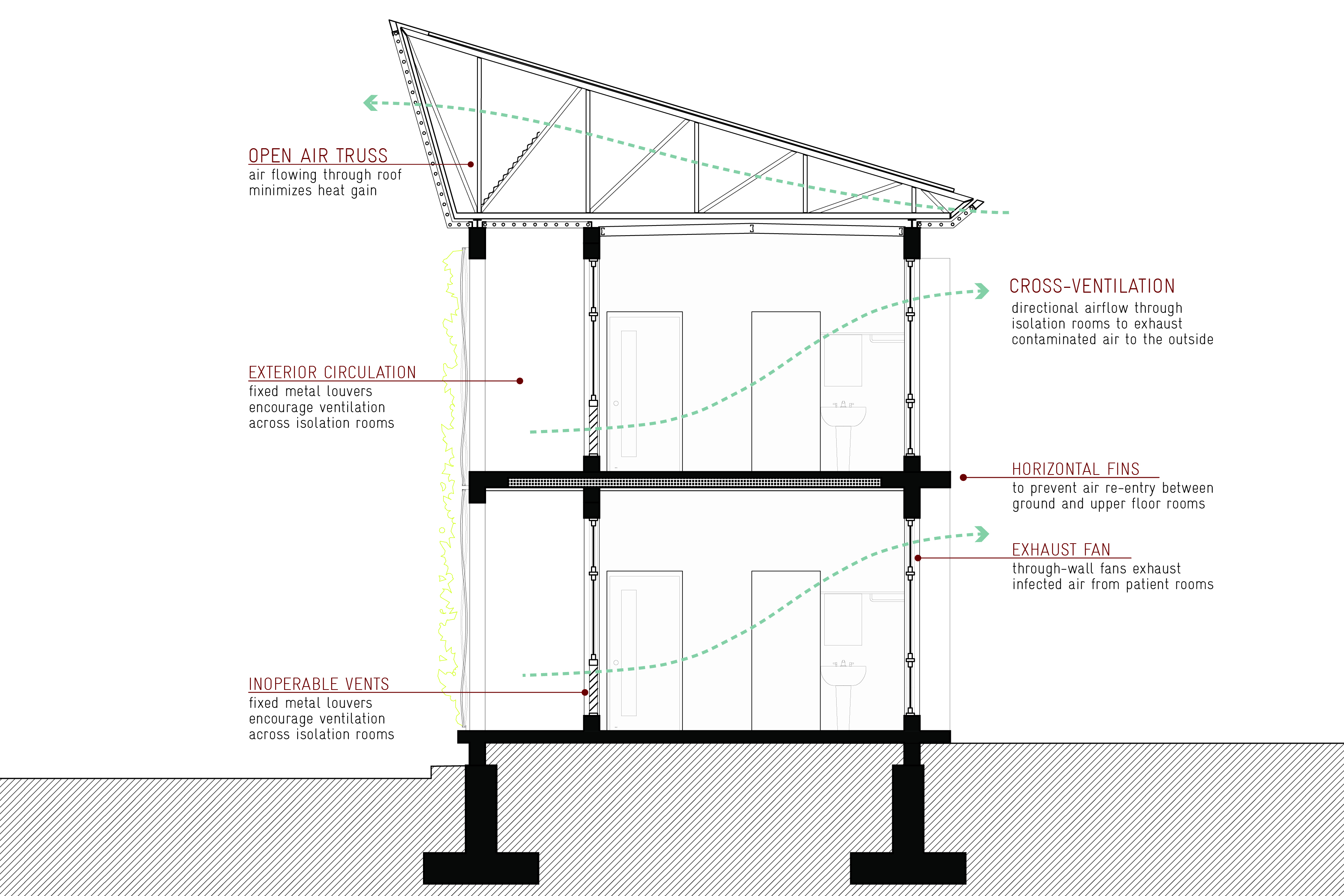

The hospital controls airborne infection through permeable soffits and metal louvres that pull fresh air throughout the units. All corridors and consultation areas are outside to promote open-air circulation and reduce the risk of patient-staff contagion.

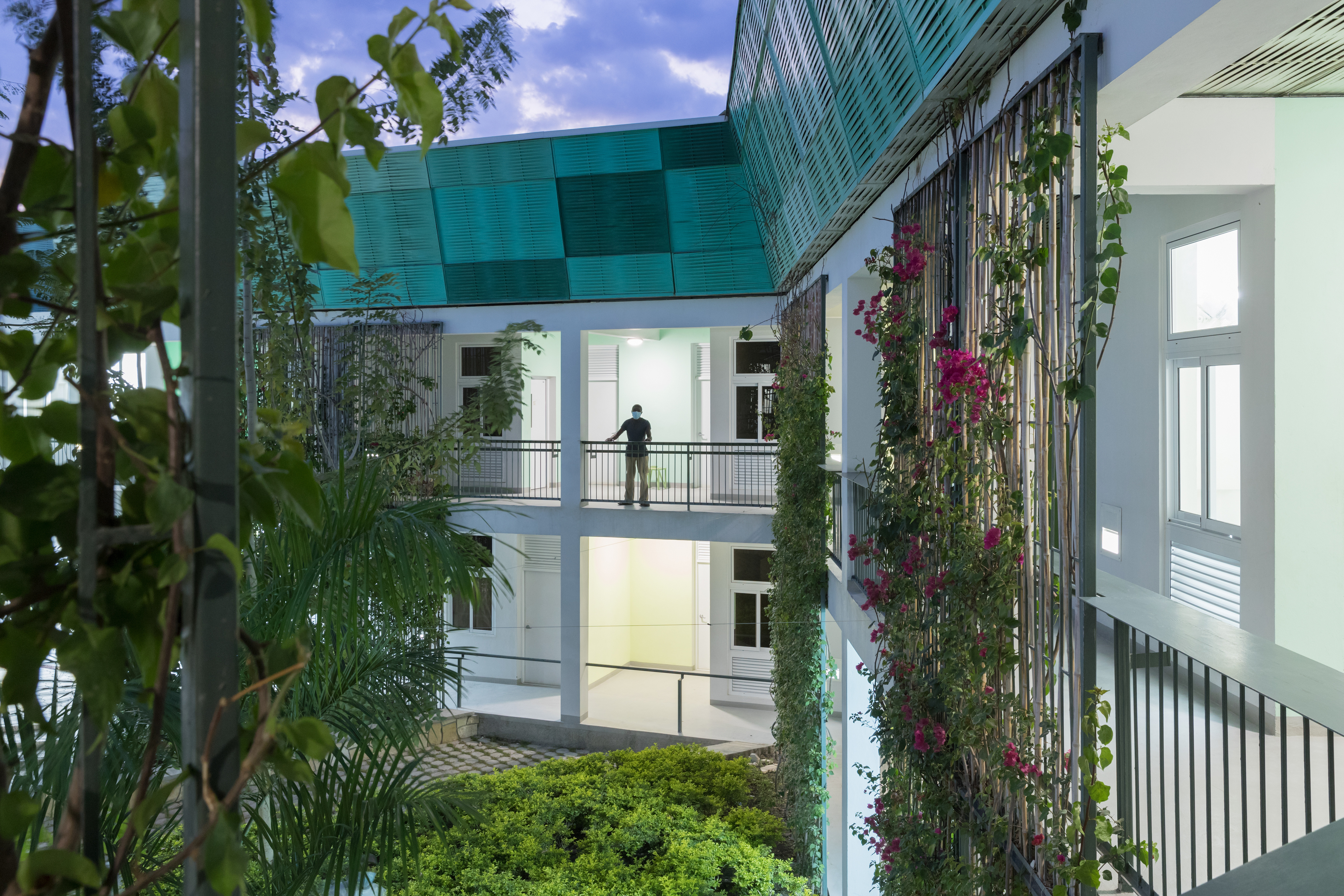

Photo of GHESKIO Tuberculosis Hospital, Photo by Iwan Baan, An evening image of the open-air corridors — © Iwan Baan

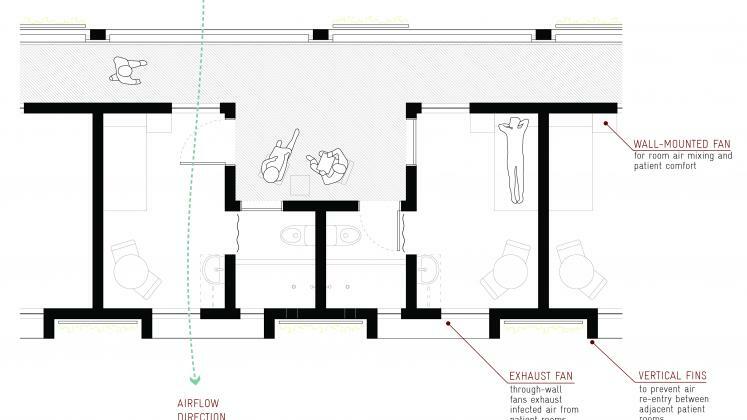

Cleaning staff can access the restrooms using a separate door from the outside to avoid entering the patient’s room and risking infection. The hospital accommodates 32 patient isolation suites, exam and x-ray rooms, offices, nurse stations, and two pharmacies, setting a new standard for TB care in Haiti.
